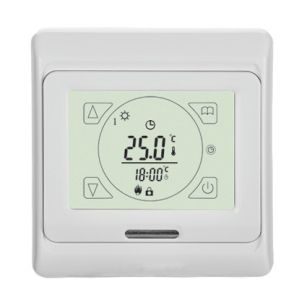

Weekly Circulation Digital Programming Thermostat with LCD Touch Screen
Introduction
Weekly circulation digital programming thermostat with LCD screen, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.
Application
For the control of warm-water(floor) heating systems and direct electric heatings systems used in Commercial buildings, Residential buildings, Light industrial buildings...
Details
-Temperature setting range:5-90 degree
-Limitation range:4-99 degree(factory setting:28-32 degree)
-Switching differential:+0.5K
-Ambient temperature:-5-50 degree
-Protective housing:IP20
-Power consumption:2W
-Power supply electric voltage: 110-240V AC
-Housing material: anti-flammable PC
-Floor sensor: rubber thermoplastic NTC sensor, cable length 3m
-Blue background light
-Rating load: 3000W
-Biggest electric current: 16As(obstruct)
-Size: 90x86x40mm
Features
Touch-screen operating interface
7-day programmable function for energy-saving operation
On/off control output for heating device
Symbol indicator when heating is on
Temperature limitation function for protecting the floor
“Key-lock” function for protecting the setted parameters (especially suitable for Public Places)
Current room temperature displaying when the thermostat is switched-off
Selection Table
| Model Number | Current | Application |
| E91.713 | 3A | Built-in&floor sensor, floor limit sensor, weekly programming |
| E91.723 | 3A | Built-in&floor sensor, floor limit sensor, weekly programming. A potential-free output |
| E91.716 | 16A | Built-in&floor sensor, floor limit sensor, weekly programming |
Packaging & Delivery
Packaging Details
1 BOX =0.1*0.09*0.067 CBM
1 Carton=0.43*0.39*0.29=0.05CBM
64 pcs of boxes = 1 Carton.
Delivery Time
15 days after receive your payment.
